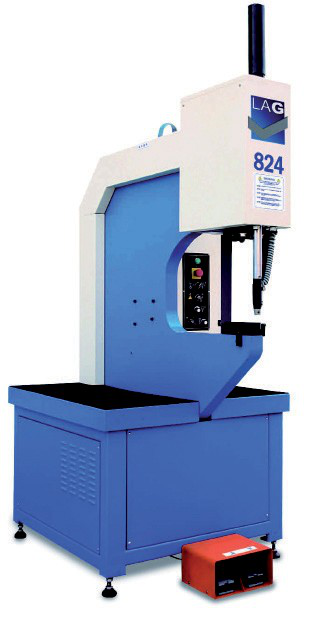

824 Plus
|
機器的主要特點: - 高剛性整體式加工的機身結構,壓鉚工作過程 中無變形，確保壓鉚精度 - 按人體工程學設計的機身結構及完美的模具組 合，簡便靈活的操作模式，一個人就可以方便的 完成大部分復雜的壓鉚工作 - 快速設置最佳的目標壓鉚力并保證壓力重復精 度達到±1%; - 沖壓載荷：最大72KN - 喉深： 610mm - 最新設計的高可靠性、高穩定的節能液壓系統 - 100%防壓手安全系統 - 標配模具保護限位裝置 - 最大可以壓接M12碳鋼螺母于碳鋼基材 - 通過調整保壓時間可以最大壓鉚M8的不銹鋼螺 母在不銹鋼板材等較硬的材料 - 標準顏色：藍白 - 標準電壓：3相380V/50HZ
Main Feature -High stiffness, structure, high stability, less vibration, high accuracy -Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator -Quick press force setting and repeatability ±1% -Ram force range MAX 72KN -Throat depth 610 mm -Energy saving Re-design reliability and energy efficiency of a full hydraulic system -100% safety system -Standard Tooling Protection System -Optional auto feeding system and self -clinch tooling -Possibility to insert M12 nut with the mild steel -Variable dwell time for use stainless steel M8 nut and materials and the others hard materials -Blue &white color -Standard power supply 3 phase 380v/50hz |
 |

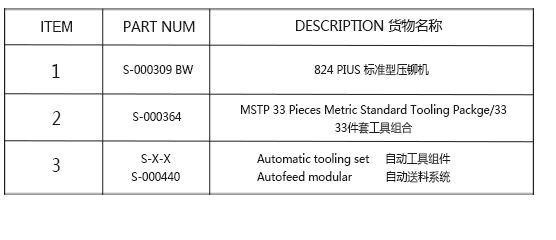

訂貨號
Machine Order Number
